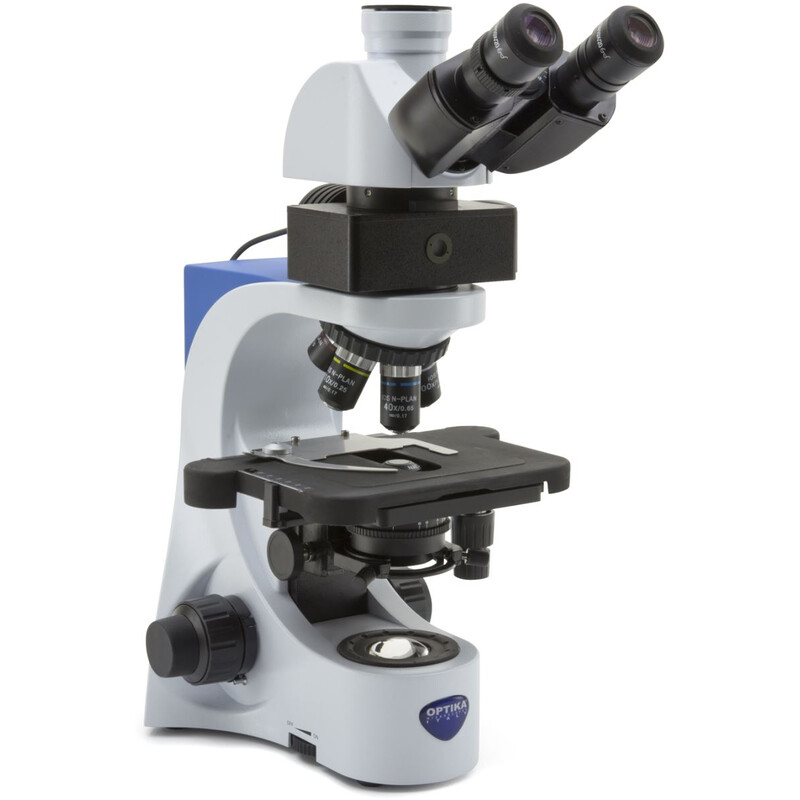

B-383LD
Observation mode: Brightfield, LED fluorescence.
Epi-illumination and filter: High-power blue LED with brightness control. 3-position filter holder; blue included.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives:
- IOS N-PLAN 4x/0.10
- IOS N-PLAN 10x/0.25
- IOS N-PLAN 40x/0.65
- IOS N-PLAN 100x/1.25 (Oil/Water)
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.
Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
VALUABLE SUPPORT TO MALARIA & TBC DIAGNOSIS
The B-383LD1 LED fluorescent microscope is a cutting-edge solution designed to enable rapid diagnosis of malaria and TBC, by using acridine-orange staining technique. The optional no cover glass W-PLAN 50x/0.75 objective is required to ensure excellent results for stunning images. The aim is to reduce the costs to a minimum and provide a cost-effective, intuitive but performing solution, purposely designed for these applications.
