Model: IOS Phase Contrast Planachromatic
Description: Objectives for brightfield, darkfield and phase contrast observation
- Magnification / Numerical Aperture
• 10X / 0,25 (M-1120.N)

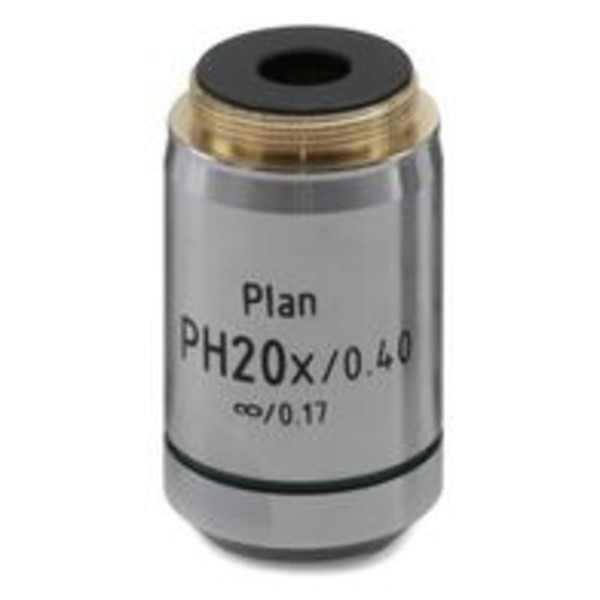

• 20X / 0,40 (M-1121.N)
• 40X / 0,65 (M-1122.N)
• 100X / 1,25 (oil immersion) (M-1123.N)
- Optical Correction Negative Phase Contrast.
- Flat field correction for 22mm F.N., planachromatic spherical and chromatic corrections.
- Mechanical tube length IOS (infinity-corrected tube length)
- Cover Glass Thickness 0.17 mm
- Working Distance • 10X W.D. 10mm
• 20X W.D. 5.1mm
• 40X W.D. 0.54mm (spring-loaded)
• 100X W.D. 0.13mm (spring-loaded)
- Screw Thread RMS Standard
- Parfocal Distance 45 mm
IOS W-PLAN PH (Plan Achromatic) objectives deliver outstanding performance in phase contrast technique, providing a great contrast generally equired in high-level education and routine laboratory needs. These phase contrast objectives are designed to ensure field flatness up to F.N. 22, based on infinity-corrected optical system.
IOS W-PLAN PH objectives are designed for B-380, B-510 and upright modular systems with phase contrast, and infinity-corrected optical
system.
