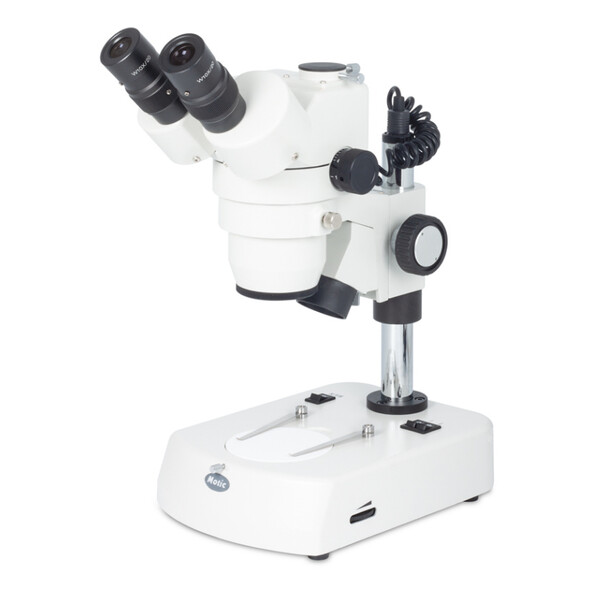

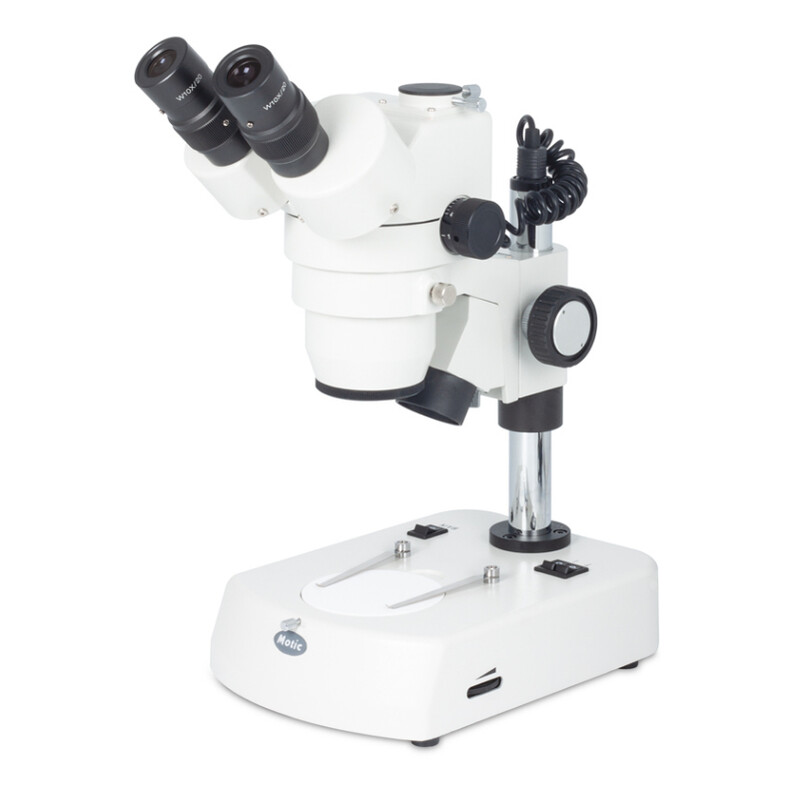

SZM-140
Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.
SMZ-143-N2GG
Optical System: Greenough

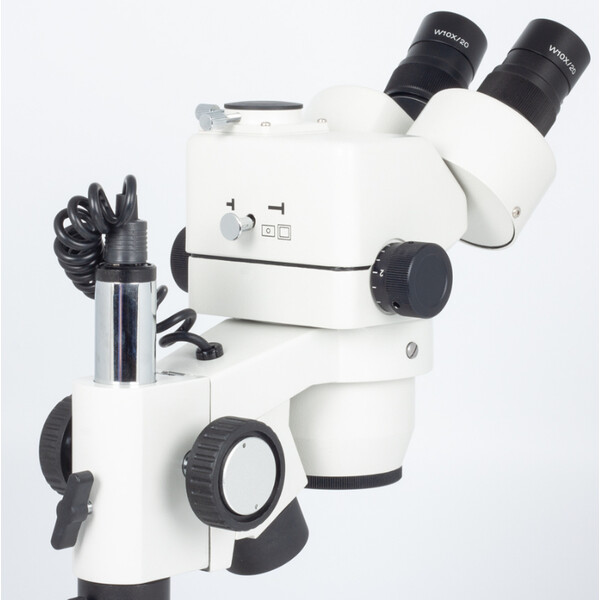

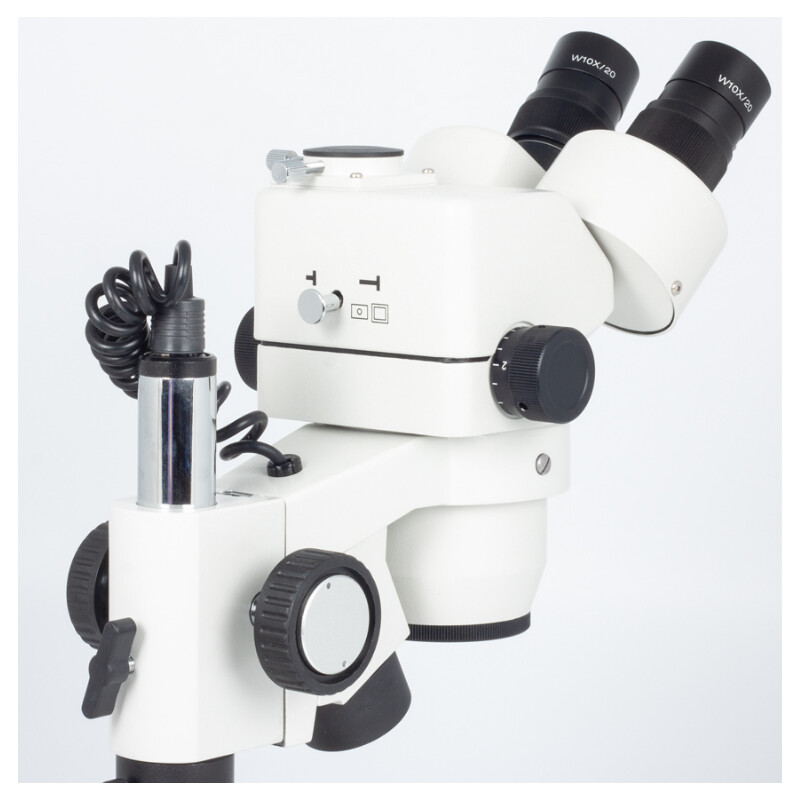

Observation Tube: Trinokclar head
Interpupillary distance: 54-76mm
Diopter adjustment: On both tubes , +/- 5 diopter
Inclination: 45° inclined, 360º rotating
Eyepieces: WF10X/20mm
Objectives system: Zoom, ratio1:4
Objectives magnification: 1X~4X
Working distance: 80mm

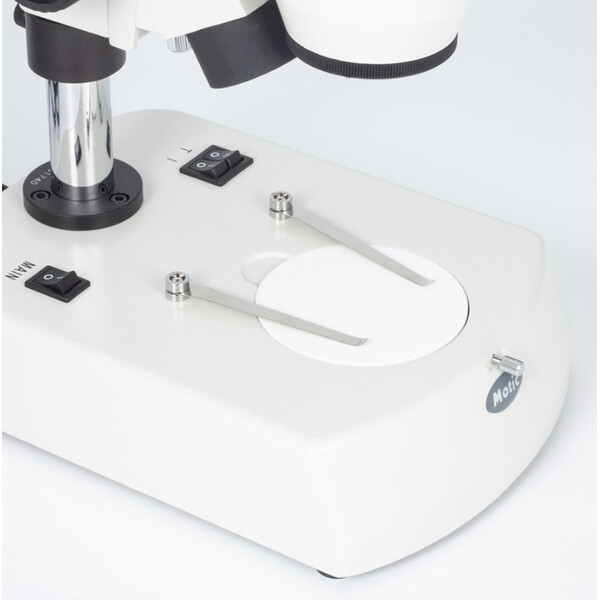

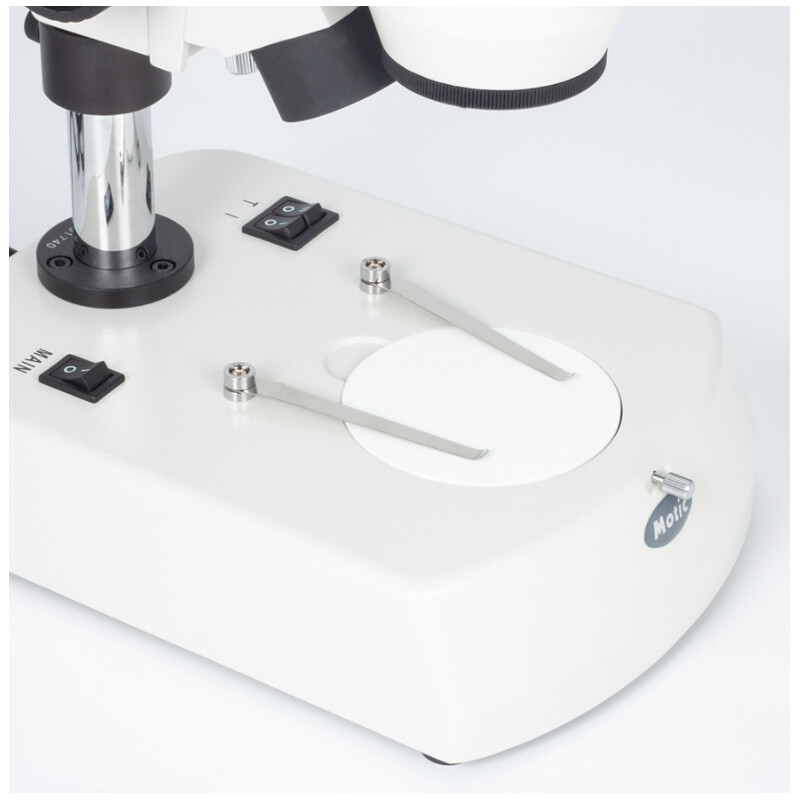

Stand: Pole type stand with transmitted illumination
Base: 237x170mm
Column/Arm: Ø25mm, 266mm high
Head holder: For Ø25mm column and Ø74mm head with incident illumination

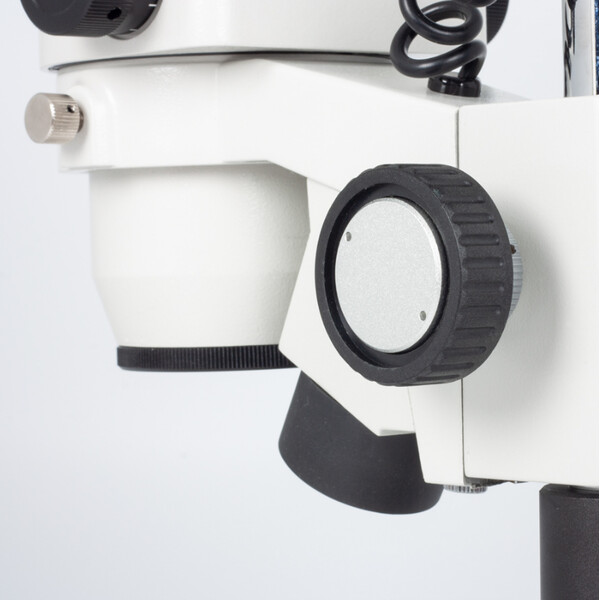

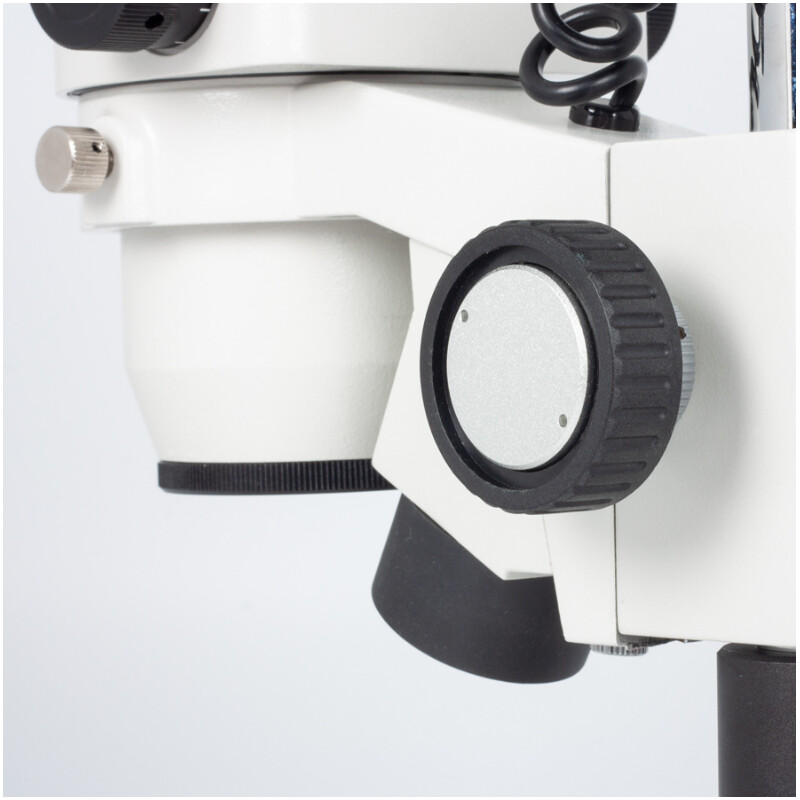

Focus mechanism: Coarse focusing system with tension adjustment
Focusing stoke: 49mm
Incident illumination: Halogen 12V/15W with intensity control
Transmitted illumination: Halogen 12V/10W with intensity control
Transformer: Internal
Power supply: 220V
Accessories included: Black, white and frosted stage plates and dust cover
Length x Width x Height: 237x170x335mm
Weight: 6,2Kg
