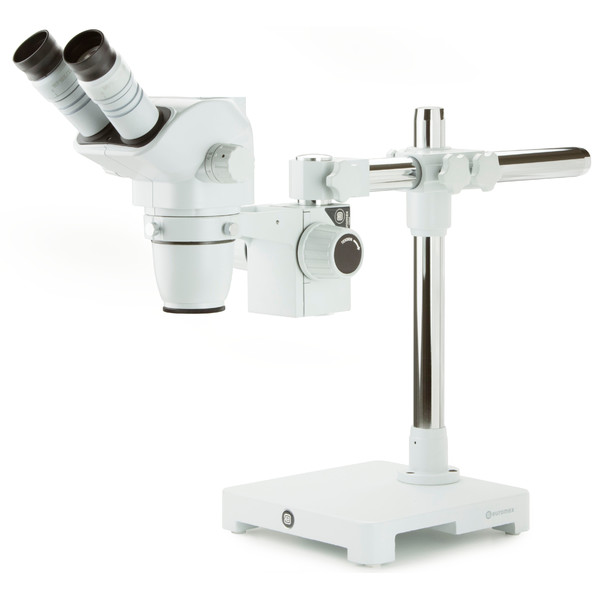

NZ.1902-U-ESD, NexiusZoom ESD, 6,7x do 45x z uniwersalnym statywem AM Arms; bez oświetlenia, ESD, bino

Euromex NexiusZoom

The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced

• Standard wide field secured WF10x eyepices with 22 mm field of view
• 45° inclined, 360° rotatable bino- and trinocular stereo heads
• 0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
• With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
• 2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
• 4 configuratieons with universal one arm or double arm stands

NexiusZoom ESD series

Specifications

• Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
• Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
• Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
• Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
• Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
• Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated
