Euromex DZ series
The modern DZ stereomicroscopes are modular configured around a central zoom body. The first with a 1:6,3 zoom ratio, a second with a 1:8 zoom ratio and a third with a 1:10 zoom ratio. The DZ modular microsope - with his Extra Wide Field eyepieces, Plan Apochromatic 0.5x, 1x and 2x common objectives, the ergonomical stereo head with 5-35° inclined tubes or a fix stereohead with 45° inclined tubes, stand with incident and transmitted LED illuminations - belongs together with the Euromex D series, to the top stereomicroscopes of Euromex 6 standard configurations are avialable for magnifications from 8 to 80 times. One can configure other configurations for magnifications from 4x up to160 times around the central zoom bodies DZ.1000, DZ.0800 or DZ.0630
The DZ series is designed around a highly precise Infinity Parallel Zoom body equipped with a Plan Apochromatic corrected common main objective providing the necessary high contrasting images and resolving power for high-tech applications. One can choose between an 1:6.3, 1:8 or even a 1:10 zoom ratio zoom body. All three versions can be equipped with 3 different Plan Achromatic common main objectives with 0.5x, 1.0x and 2.0x magnifications. Together with standard Extended Wide Field EWF10x/22 corrected eyepieces, magnifications up to 160x are achievable. Optionally WF 15x/16 and WF 20x/12 eyepieces for magnifications up to 320x are available. Two stereo head versions are available, a fixed 20° bino head or an ergonomic head with adjustable inclination from 5° up to 35°.
Stereo microscope DZ.1805
- Binocular stereo microscope with 1:8 zoom ratio
- Total magnification from 8 to 65x
- Binocular stereo head with 20° inclined tubes

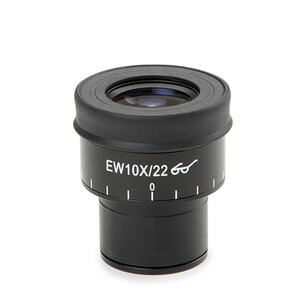

- EWF 10x/22 eyepieces
- Central 0.8 – 6.5x zoom body with click-stop
- Plan apochromatic 1x objective
- Fields or view 27.5 - 4.4 mm
- Working distance is 78 mm
- Flat ergonomic stand with incident and transmitted LED illumination
