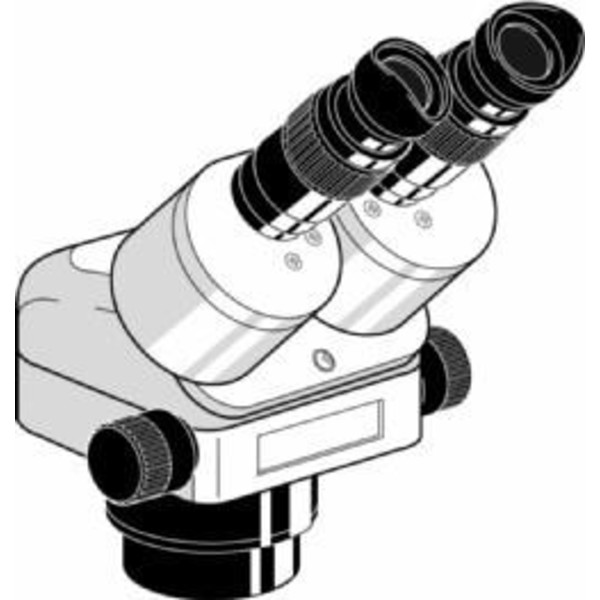

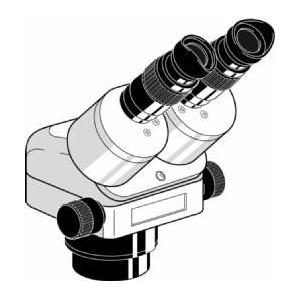

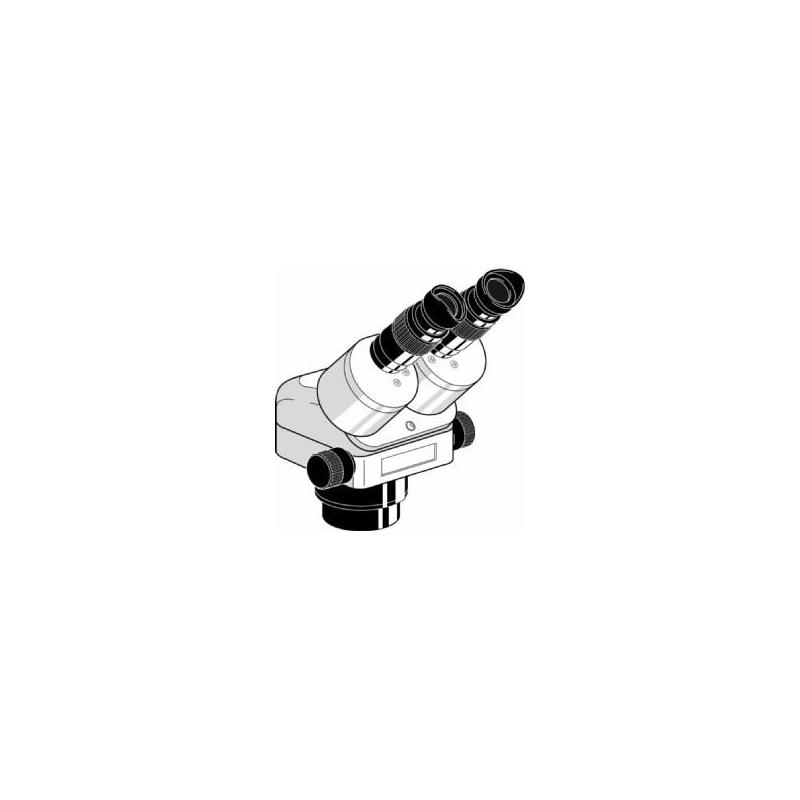

Modularny mikroskop stereoskopowy Głowica zoom ZE.1624-D, binokular, 7-45x, click-stop

The Z-series is diverse and most universal of all Euromex series microscopes.
For every application the right microscope can be compiled. This is a choice of different attachment lenses and eyepieces, allowing multiple magnifications and working distances can be achieved. The robust and completely made of metal construction ensures a long service life.

When ZE.1624 is a stereo microscope head with 10-fold SWF plano eyepieces and a zoom lens with 0.7-4.5-fold magnification. This compilation is thus a 45-fold magnification is maximum possible. Click-Stop is a practical system to phase based magnification. Related accessories for other magnifications is also available.

• Field of view: 32-5.1mm
• Free working distance: 93mm

The stereo heads with extension-D in the product name

For exact size calculation can be set exactly by Click here Zoom technology of Zoom.

The click-stops are the following zoom settings: 0.7x / 1x / 1.5x / 2x / 2.5x / 3x / 3.5x / 4x und4.5x
