Metalowy statyw dla Q-scope: QS.MS45-D

MODEL QS.MS45-D

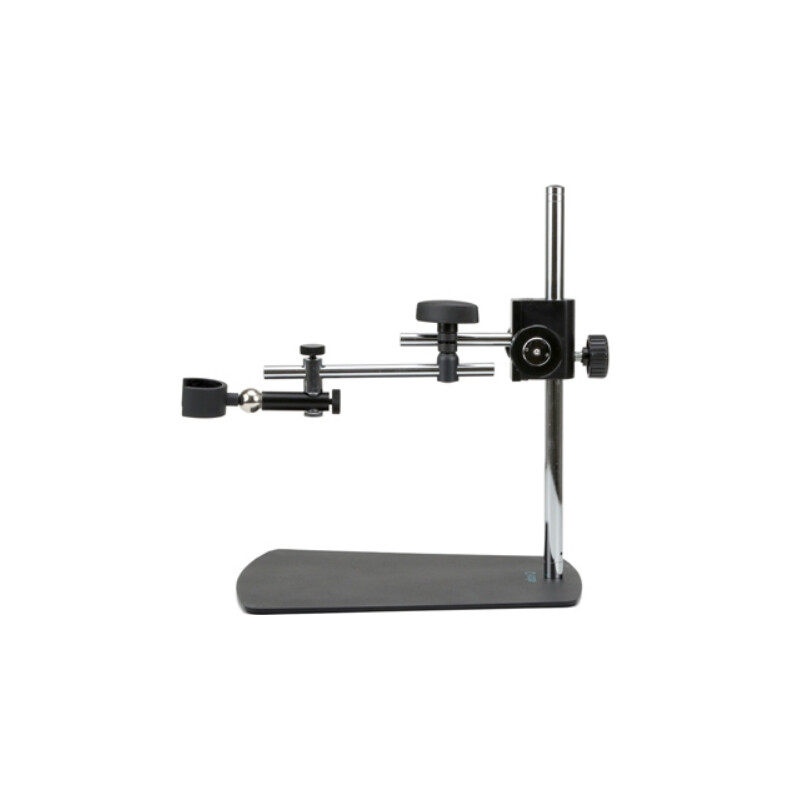

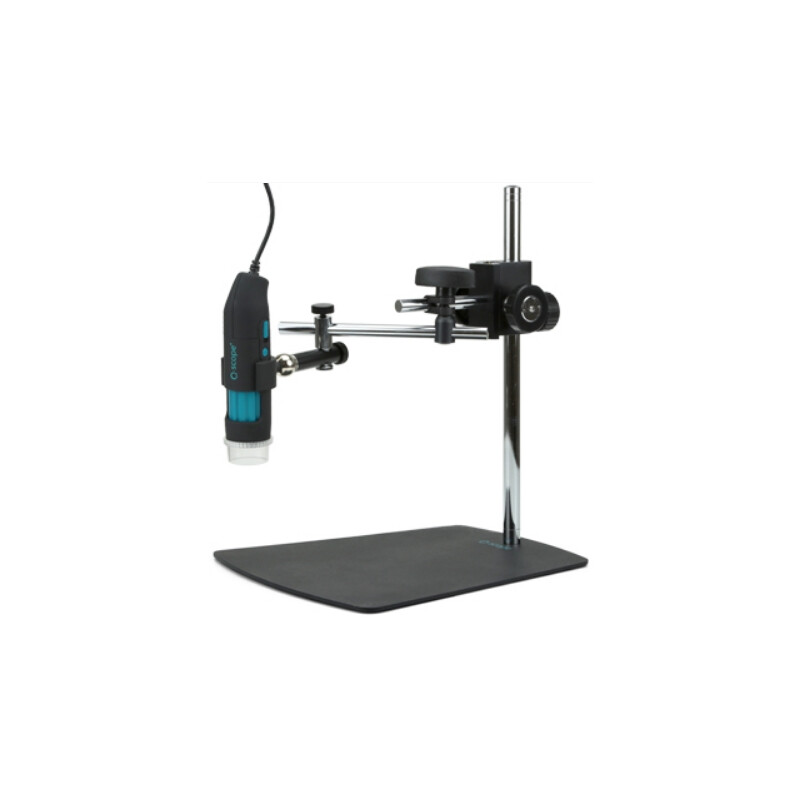

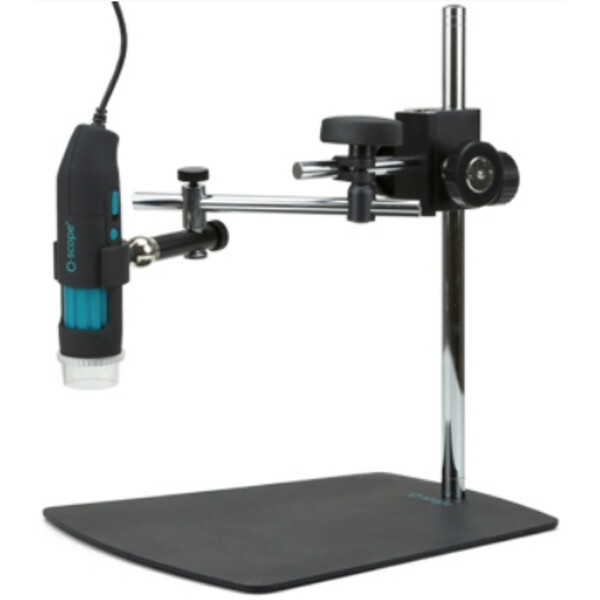

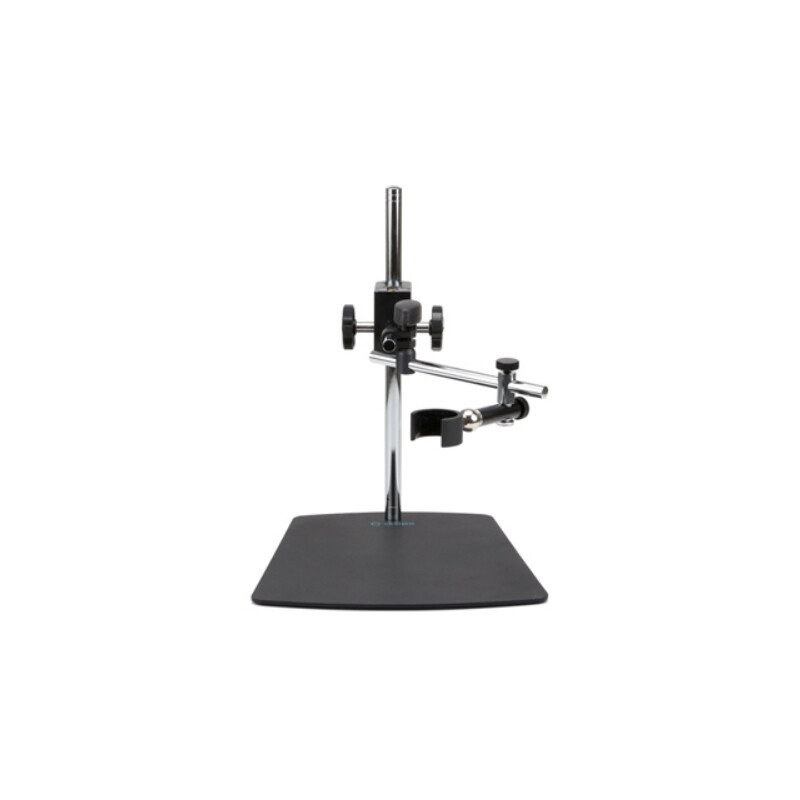

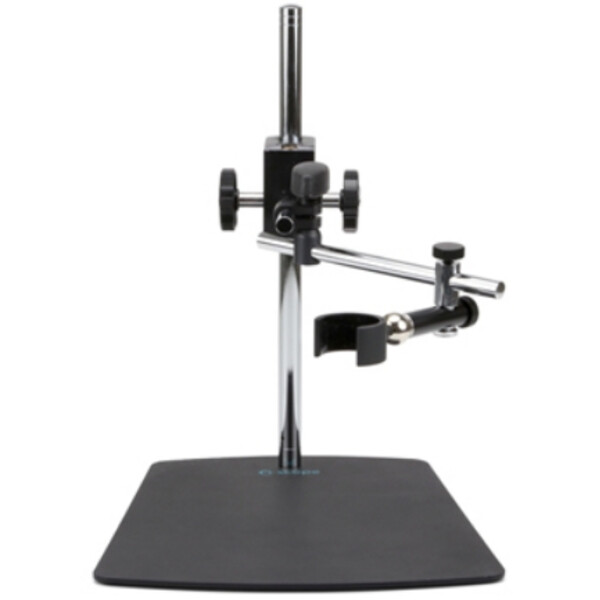

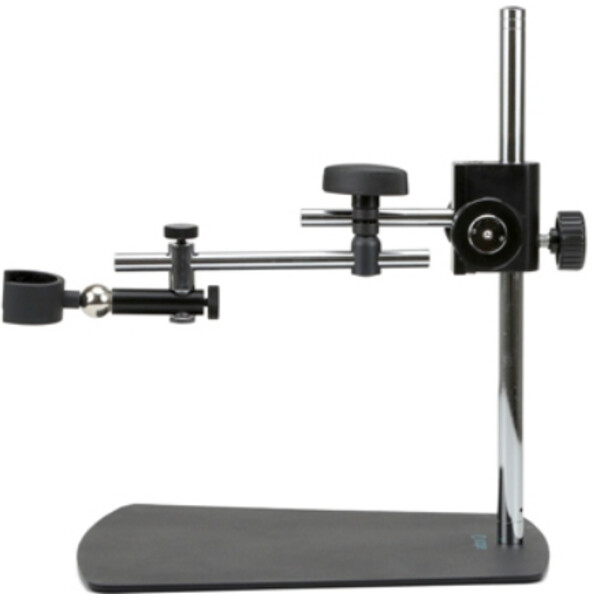

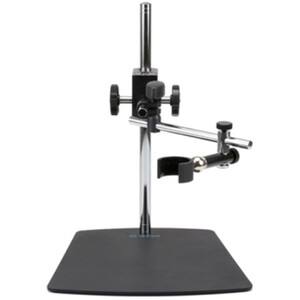

Q-scope Metal Articulated-arm stand with fine focus adjustment and easy 3D positioner

The Q-scope Metal Articulated-arm Stand with fine focus adjustment 3D positioner offers an extra steady positioning of the microscope. The large pillar and long articulated arm enables users to place large objects under the Q-scope and still use the 3D-positioning holder to literally position the Q-scope in any three dimensional position effortlessly, using only ONE hand! The fine focus adjustment system allows accurate positioning and focusing of the Q-scope.The Q-scope can be used with different types of stands, depending on your type of application

SPECIFICATIONS

MODEL QS.MS45-D

DETAILS Q-scope stand

Q-scope Metal Articulated-arm stand with fine focus adjustment - fixed positioner. Extra stable and height adjustable articulated-arm stand with fine focus adjustment and 3D positioner for precise microscope control in height and all directions, suitable for large objects

Applications All

STAND Features Height adjustable with precise fine focus, articulated, portable, 3D positioner, suitable for large objects

Dimensions (w) 220 x (l) 250 x (h) 287 mm

Working distance 0 - 235 mm

Working range (X/Y) 297/327 mm

Focusing range 44 mm

Weight 1.9 kg

Compatible with All Q-scope models

Package contents Stand, fine focus unit, easy 3D positioner holder, wrench, cable guiding clamp, user manua
