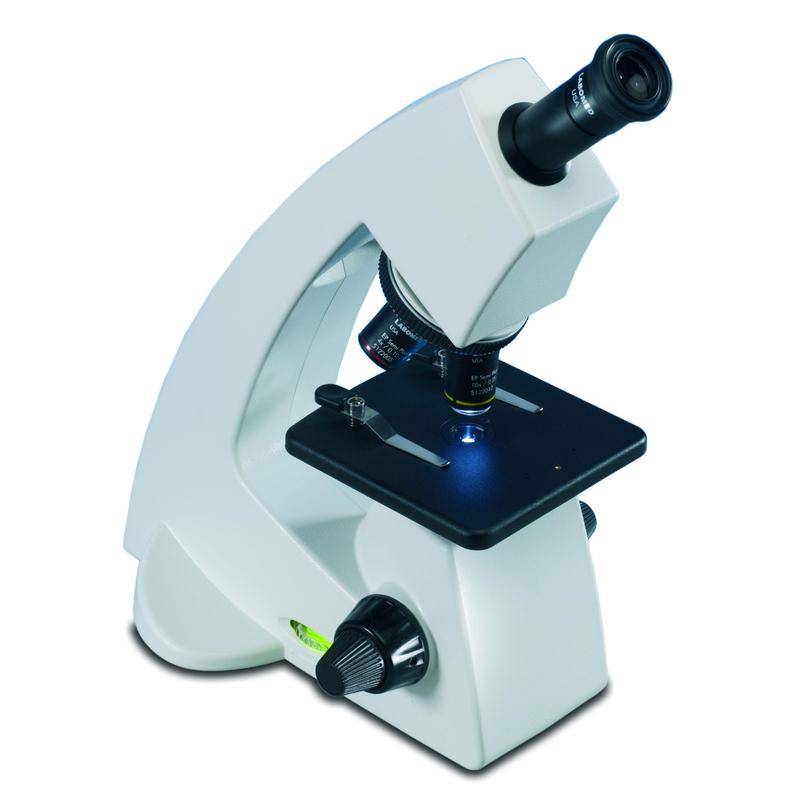

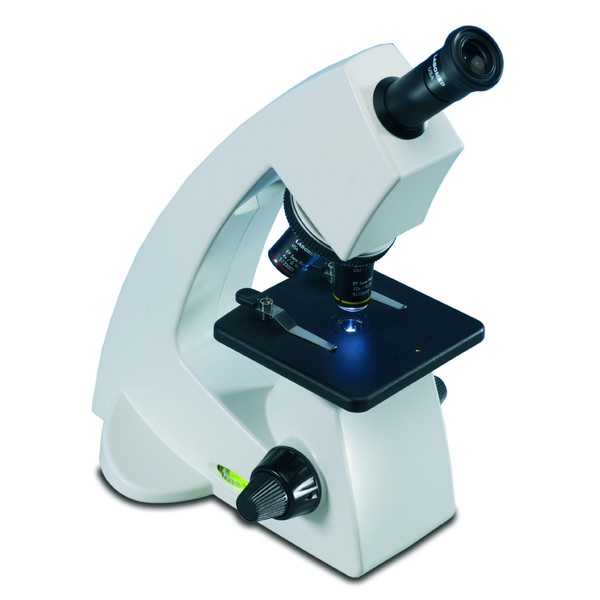

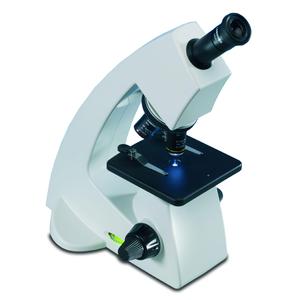

Mikroskop HPM SIGMA

THE student microscope

The new model is a compact HPM Sigma-light microscope in the training, except the focus, your students can adjust anything! It has no freely accessible parts and fittings. The microscope is a closed system with an easy-care, ergonomically molded plastic outer covering!

It has a 45 ° inclined monocular, a lightweight aluminum tripod with plastic trim and a 4-position nosepiece.

To focus on HPM SIGMA are coaxial controls for coarse and fine drive mounted with slip coupling.

Even the look of the HPM SIGMA is well equipped. It has a fixed 10x/18mm WF Eyepiece with Eyecup EP and three DIN semi-plan objectives (4x, 10x, 40x) from which the 40x lens is equipped with specimen protection, so that their students the preparation 40 - 400 fold increase can be observed. Optionally, the microscope is even upgradeable to up to 1000-fold magnification.

The adjustable, rechargeable LED lighting, which should operate without cable also allows microscopic fun in the outdoors. The tightly integrated condenser NA 1.25 and 125 x 120 mm stage with 2 stage clips round out the package HPM SIGMA.


Great learning success is guaranteed.
