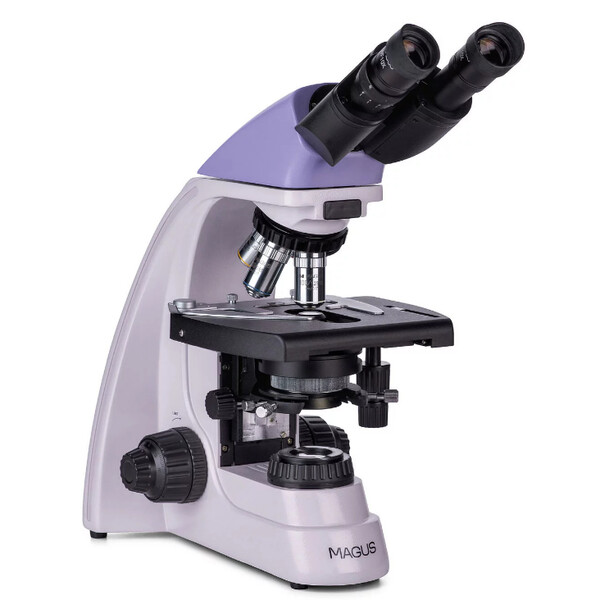

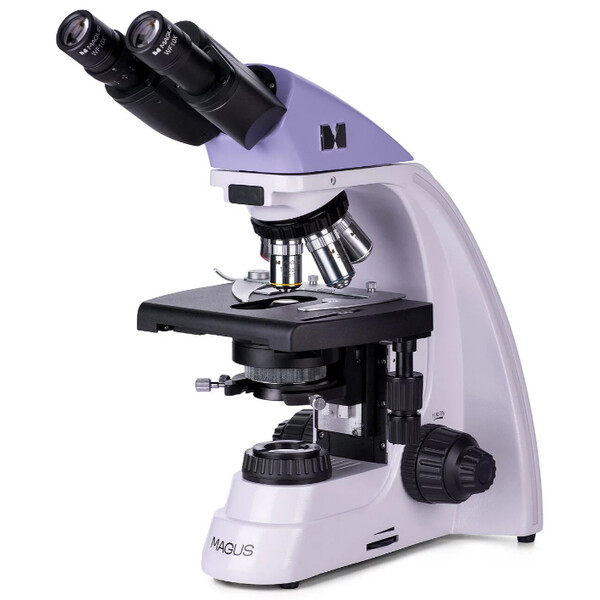

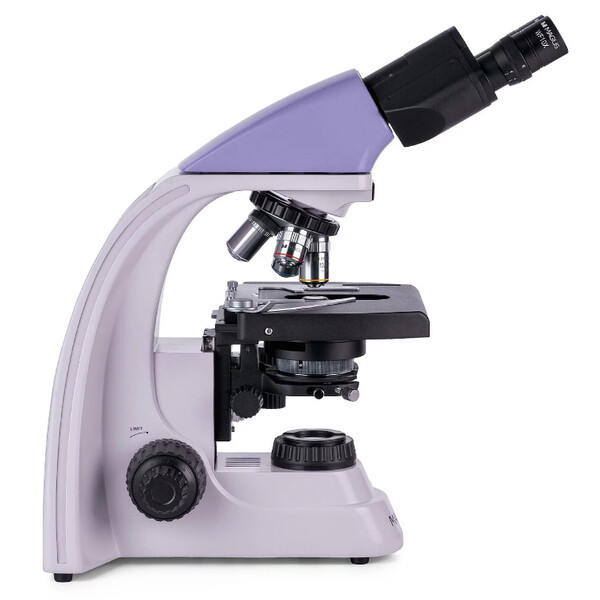

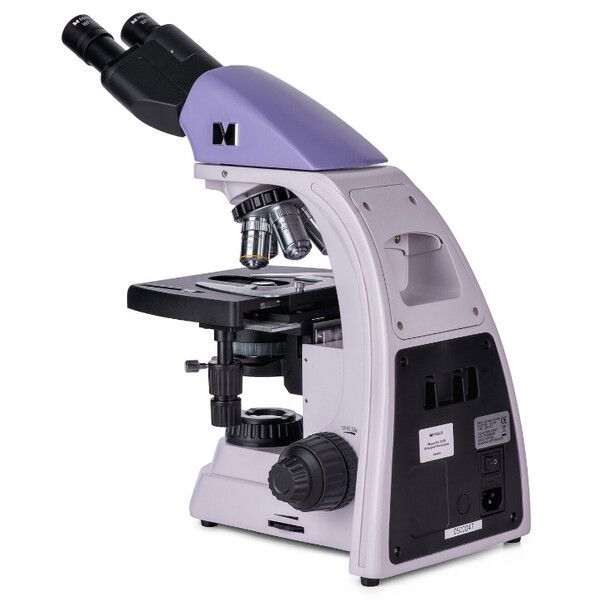

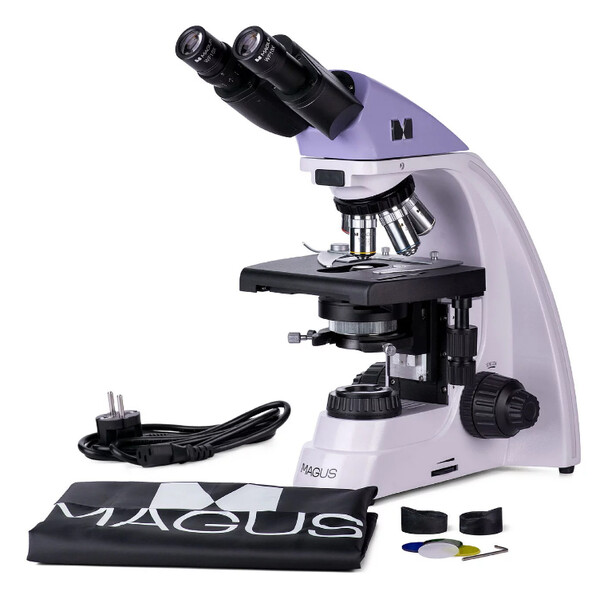

The microscope is suitable for observing transparent and translucent biological samples, such as smears and cross sections in transmitted light in a bright field. The installation of additional accessories will allow for darkfield, phase-contrast, and polarization methods. The microscope is suitable for daily laboratory work, research, and teaching.

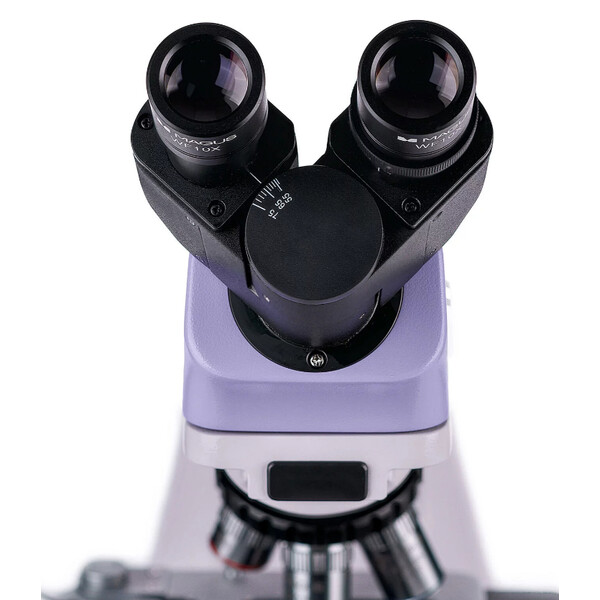

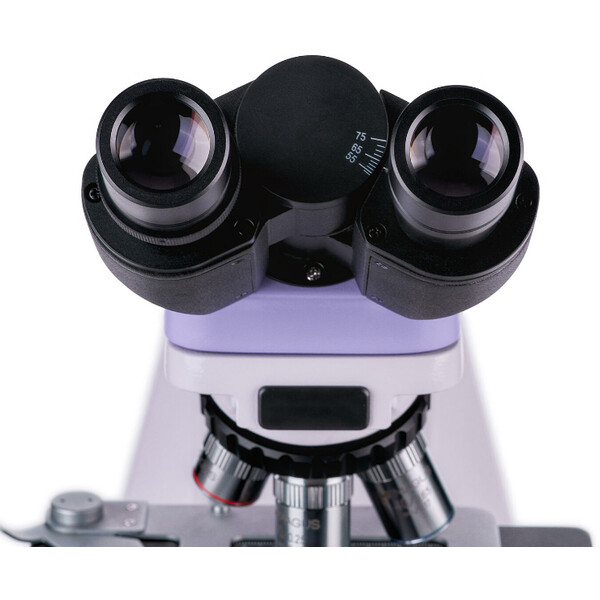

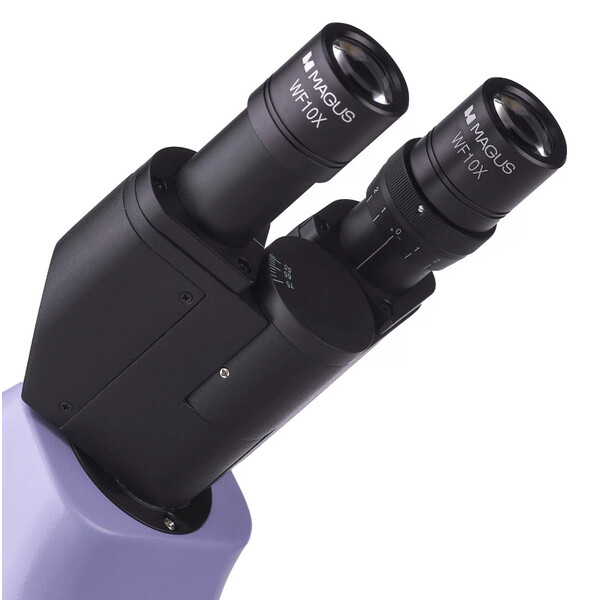

Microscope head
Binocular head with infinity achromatic objectives. Eyepiece tubes rotate 360°. The user can adjust the eye relief on the eyepiece to fit their height. The digital camera is mounted instead of an eyepiece in the eyepiece tube with a diopter adjustment ring.

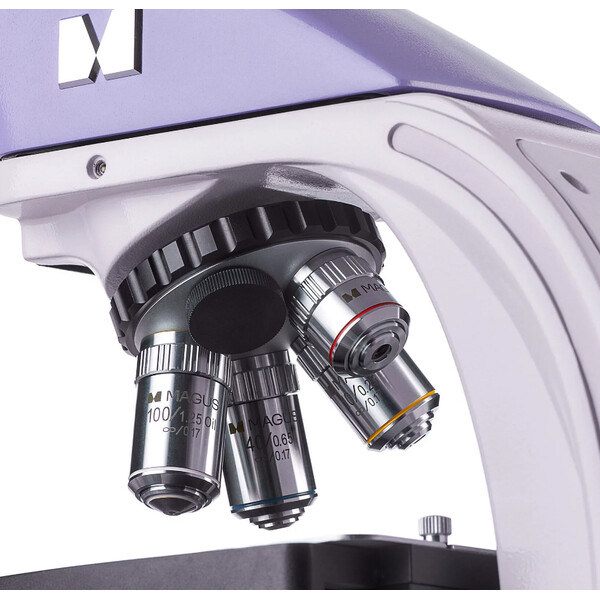

Revolving nosepiece
5 objectives. A slot for the installation of an additional lens that increases the range of magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.

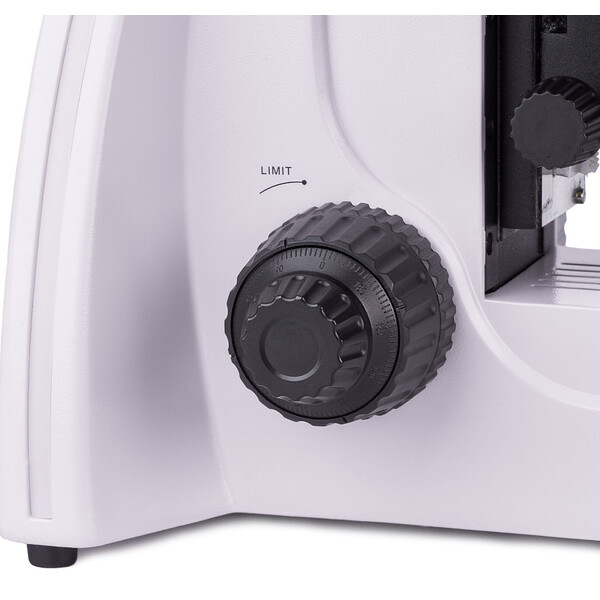

Focusing mechanism
Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can put their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy.

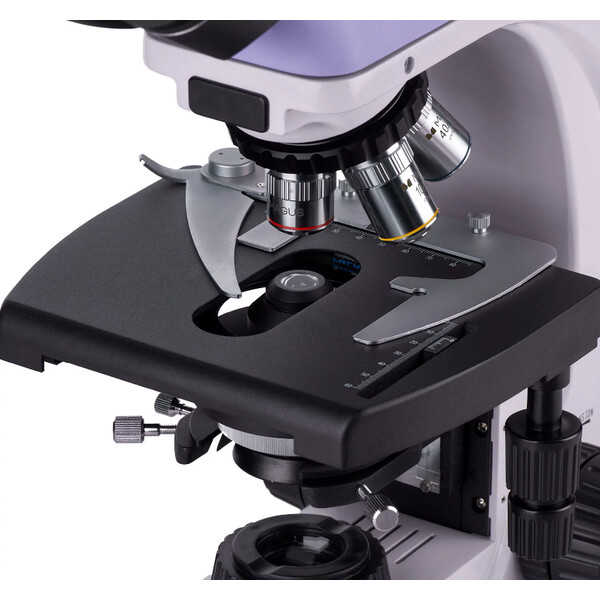

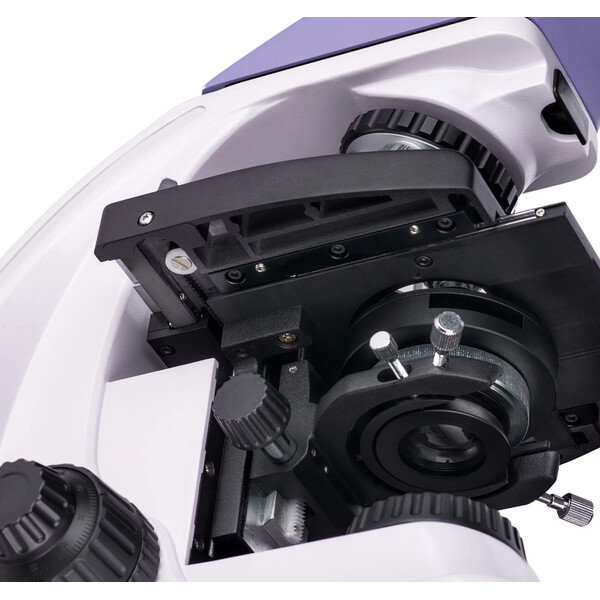

Stage
To ensure ergonomic operation of the stage, it does not have an X-axis positioning rack. The mechanism that has been mounted into the stage moves the object smoothly. The slide holder is attached by way of two screws and can be removed for easy operation.

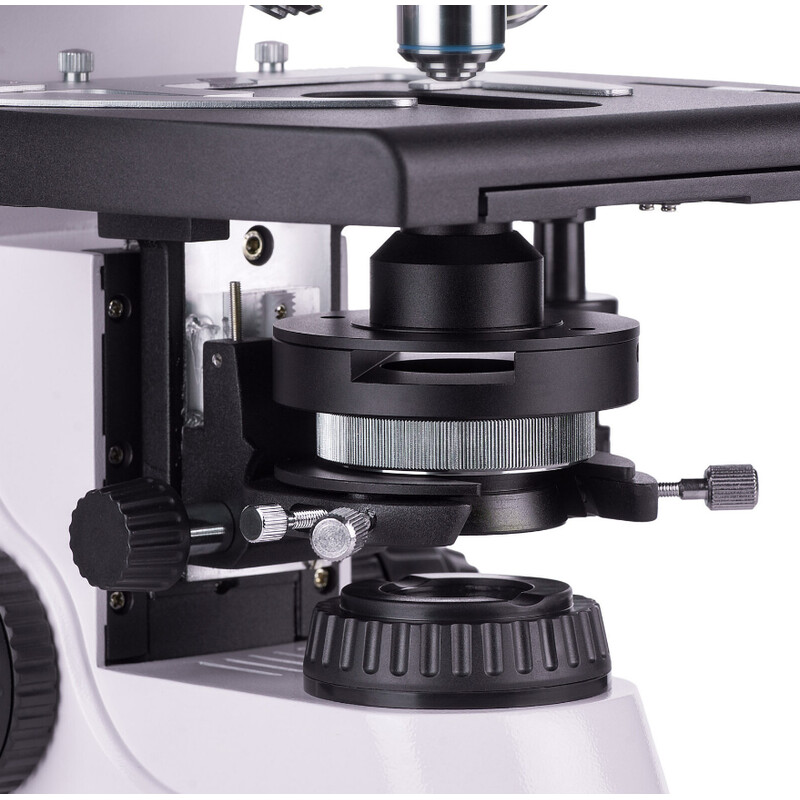

Abbe condenser
The condenser has a slot for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation method.

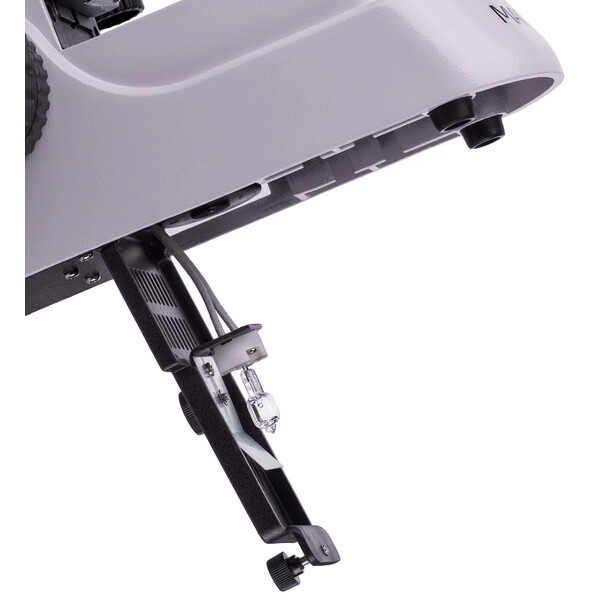

Illumination
A halogen bulb emits warm colors that the eyes are used to. The bulb replacement requires minimal effort. The 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast methods.
Accessories
There is a line of accessories designed for the microscope: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides.
