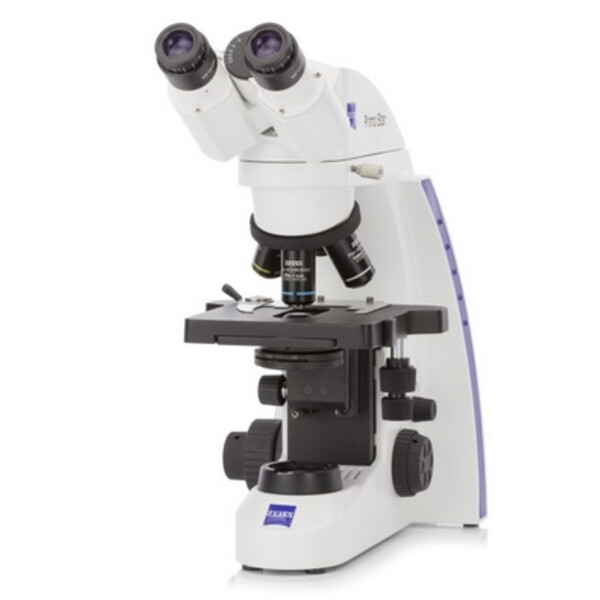

Mikroskop Primostar 3, Full-K, Tri, Ph1, Ph2, Ph3 SF22, 5 Pos, ABBE 0.9 Rev., 40x-400x

New models

Ready-to-use package. Tailored perfectly to your application. The fixed-Köhler version of Primostar 3 comes pre-adjusted with a large 22 mm FOV (field of view) - just plug and play.A useful selection of objective lenses and eyepieces is already in place.Additional plus: manage costs and energy with long-lasting LED illumination.

Specification Primostar 3

• trinocular tube 25° (fototube)
• objectives i-Plan-Achromat 4x, 10x, 40x
• mechanical rackless stage 75x40, driveright and specimen holder for one slide with spring clip left -
• Abbe condenser 0.9/1.25
• Transmitted-light illumination LED 3W 5700K
• external power unit 100...240VAC/50...60Hz/30VA with country-specific adapters
• eyecups
• dust cover

Plus in comfort

• With ergo-stage drive
• Double slider holder
• Light manager
• Eco mode

Binocular phototube 25°/22 (50:50) for Primostar 3, reversed image
