The microscope head is used in conjunction with a universal stand and a focus mount. It is designed for observing three-dimensional objects and the details of their structure while maintaining the virtual volume and clarity of the surface relief.
The Greenough optical design provides a large depth of field and produces three-dimensional images thanks to a 15° stereo angle. The microscope head magnifies the image of an object without losing spatial orientation.
The head, mounted on a universal stand, can be used for restoration, soldering, assembly, quality control, and other similar activities.

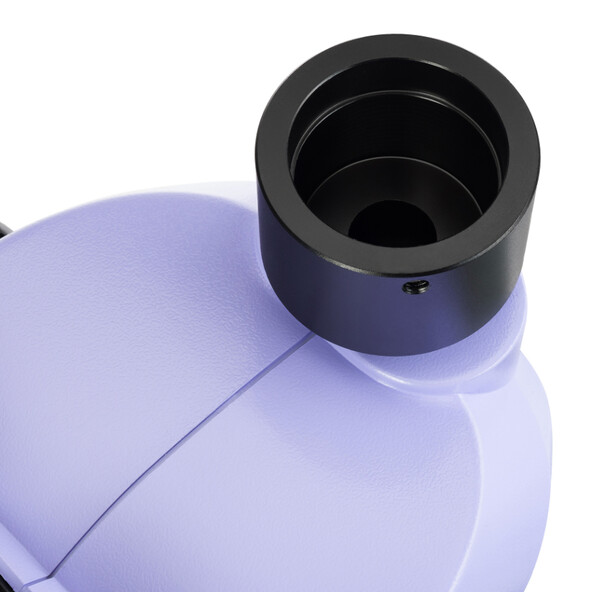

The microscope head is trinocular; the digital camera is installed in the trinocular tube using a C-mount adapter. Additional auxiliary objective lenses with different magnifications are available for order.
The base kit includes 10x/22mm eyepieces with diopter adjustment and a long eye relief for working with glasses.
The objective smoothly increases magnification up to 8.4x without focus reduction. The optical design delivers an upright (not inverted) three-dimensional image. Additional auxiliary objective lenses may increase the magnification range as well as change the field of view and working distance of the microscope.
