Mikroskopy > Akcesoria do mikroskopowania > Aparaty fotograficzne > Aparaty fotograficzne > Optika > C-B > Optika Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Numer produktu: 57546

Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0

w dłuższym terminie
gotowe do wysyłki w 6-10 tygodni + czas przesyłki

Brak możliwości dostawy przed Bożym Narodzeniem


Opis artykułu

Więcej o serialu C-B...

Polski tekst jest jeszcze w opracowywaniu. Na razie dostępna jest tylko wersja angielska. Przepraszamy!

USB Cameras – B Series

Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging.

OPTIKA B Series represents a cost-effective solution equipped with the latest technology sensors with more vivid colors and great contrast for stunning images. This series features Aptina CMOS sensor with excellent color reproduction, significantly high frame rates and several resolutions available to match any customer need. Thanks to the convenience and simplicity, being extremely intuitive to install and operate, the OPTIKA B Series is recommended for educational and routinary microscopes, also as eyepiece cameras (no need for additional adapters/rings in case of monocular and binocular microscopes).All the main operating systems like Windows, IOS, Linux are supported. SUPERB RESULTS AND VIVID DETAILS FROM STANDARD TO HIGH RESOLUTION. OPTIKA B cameras are provided with remarkable and cost-effective sensors to capture vivid colors and generate relevant contrast for stunning images and delivering incredibly accurate colors just as you see them. Convenience and simplicity make sure these cameras are appreciated for teaching and routine applications in several fields. USER-FRIENLDY USB CAMERAS FOR GENERAL PURPOSES. Connect the camera to a PC via USB and install the most suitable OPTIKA software for your needs. The incredible capabilities of OPTIKA software suites ensure intituitive operations for live view and image/video capturing for basic users and give the chance to obtain more advanced functions (including HDR, EDF, stitching & tiling, customized report generator etc.) for experienced users. All the main operating systems like Windows, Mac OS, Linux are supported.

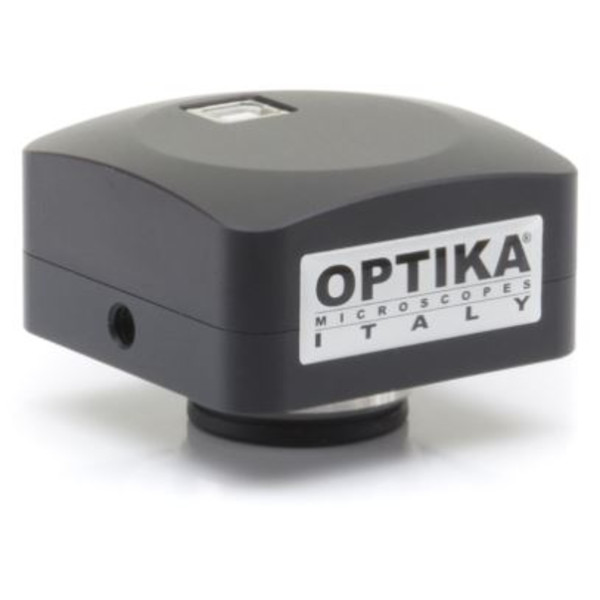

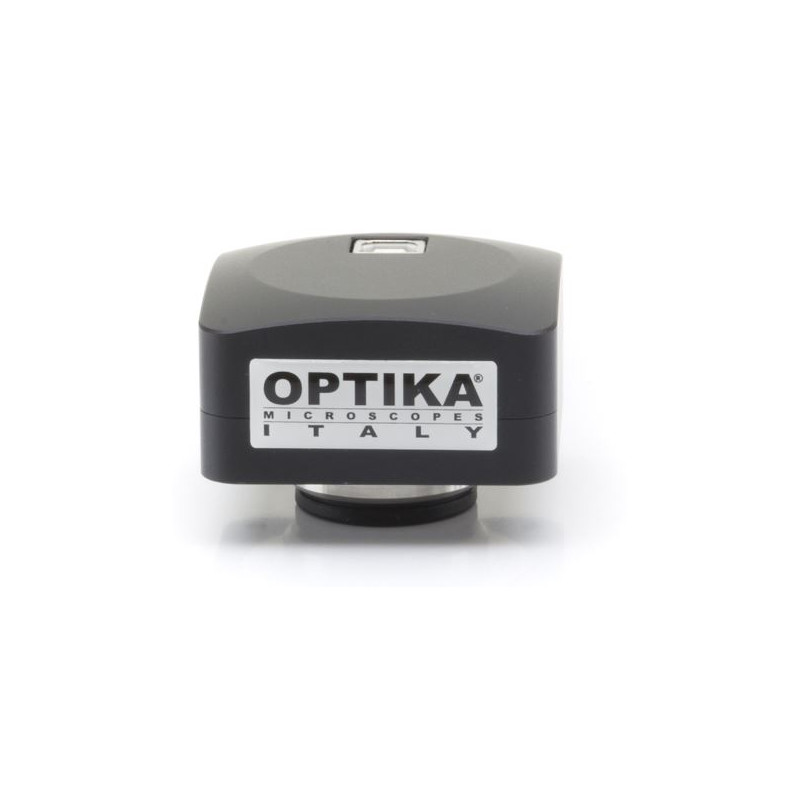

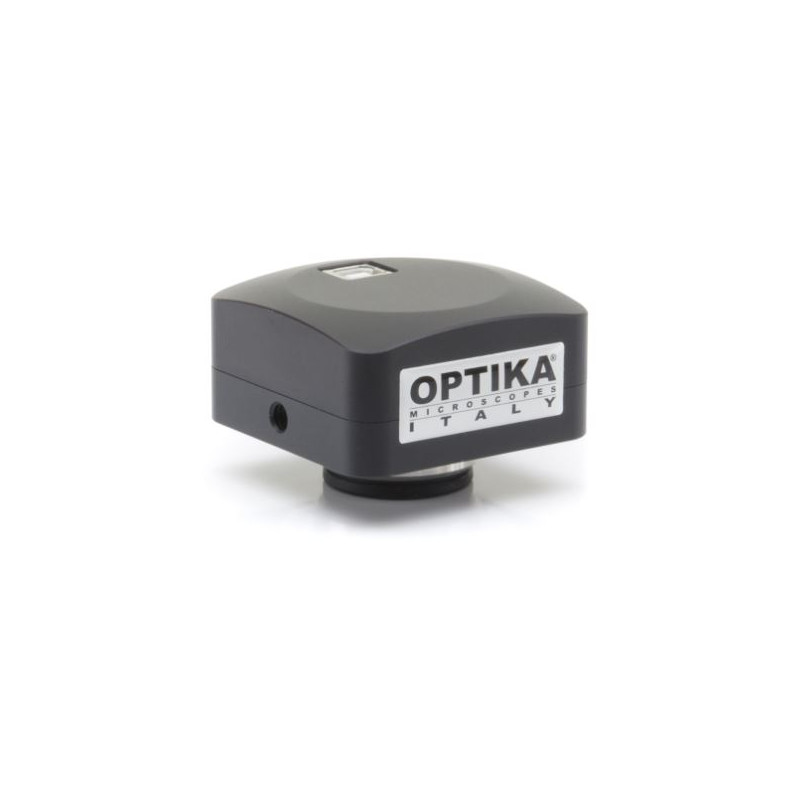

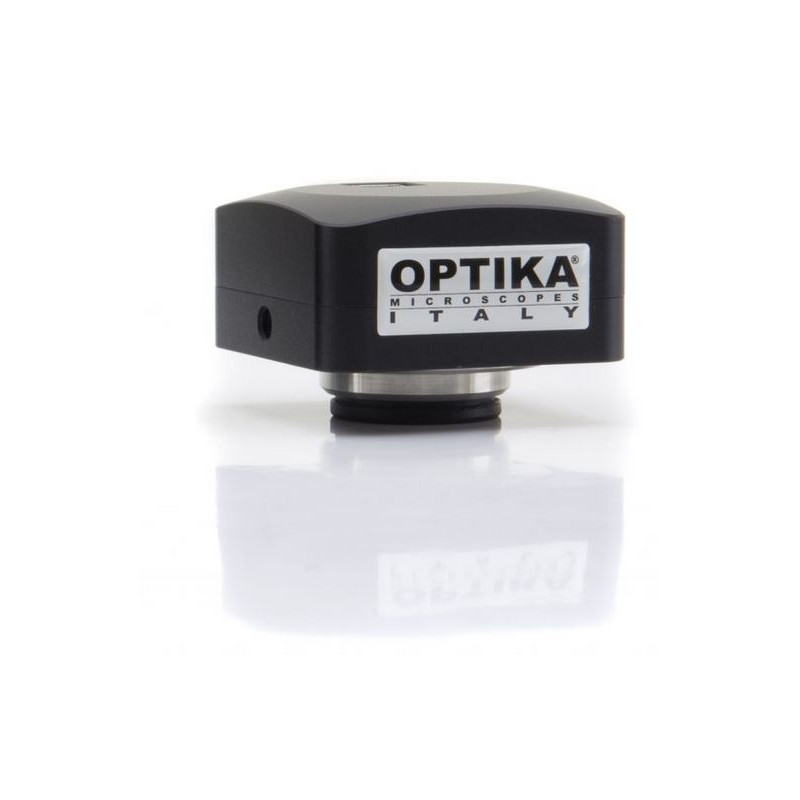

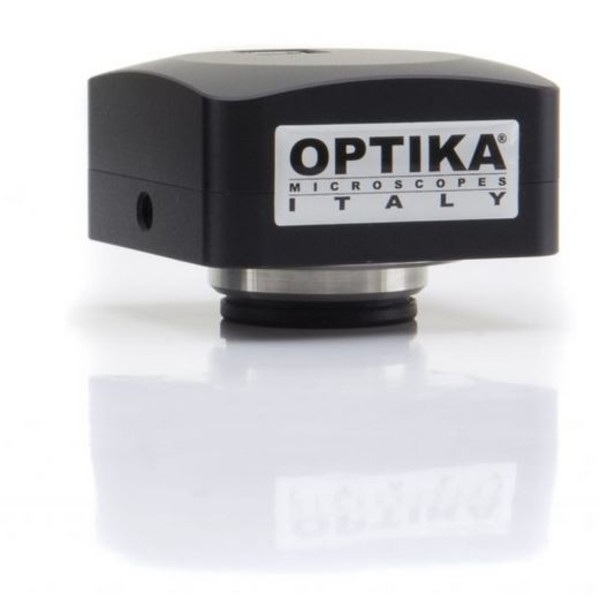

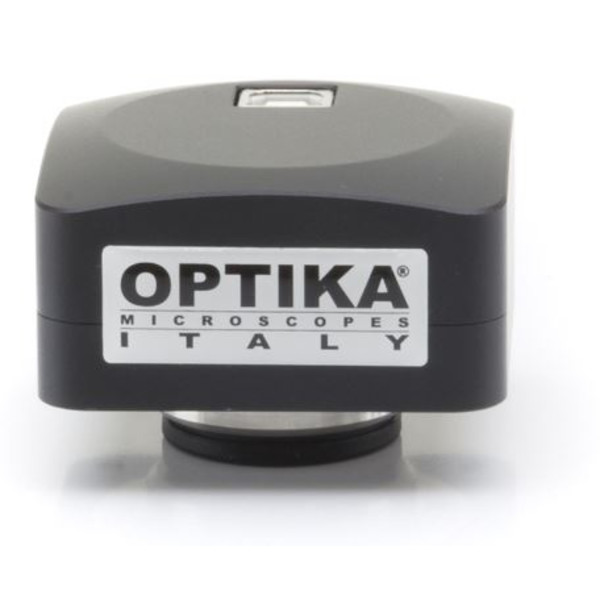

C-B5

Cost-effective CMOS camera for routine applications. Recommended for educational microscopes and routinary microscopes, also as eyepiece camera. Aptina CMOS sensor with excellent color reproduction for routine applications. 5.1 MP resolution. Eyepiece and C-mount connection for each application required. Excellent color reproduction. Can be connected to monocular, binocular or trinocular microscopes. Including 3 softwares (OPTIKA Vision Lite, OPTIKA Lite View and OPTIKA Pro View) for Windows. Lite versions available for Mac OS and Linux. Equipped with lens for optimized field of view, 30 and 30.5 mm eyepiece adapter rings and calibration slide for establishing measurement baselines.

CAMERA SPECIFICATION

Digital camera resolution: 5.1 MP (2592 x 1944)

Signal output: USB 2.0

Sensor Size 1/2.5”

Sensor technology: CMOS

Sensor type Aptina: CMOS

Image format: 4/3

Pixel size: 2.2 x 2.2 µm

Frame rate full resolution: 7 fps (2592 x 1944)

Frame rate other resolutions: 27 fps (1280x 960); 90fps (640x 480)

Sensitivity: 0.53 V/lux-second

Signal / noise ratio: 40.5 dB

Dynamic range: 66.5 dB

ADC conversion: 8 Bit

Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit

Exposure Time: 0.294 msec - 2 sec

Binning: 1x1; 2x2; 4x4

IR filter: 380-650 nm (IR-cut filter)

Camera power: PC USB

C-mount: YES

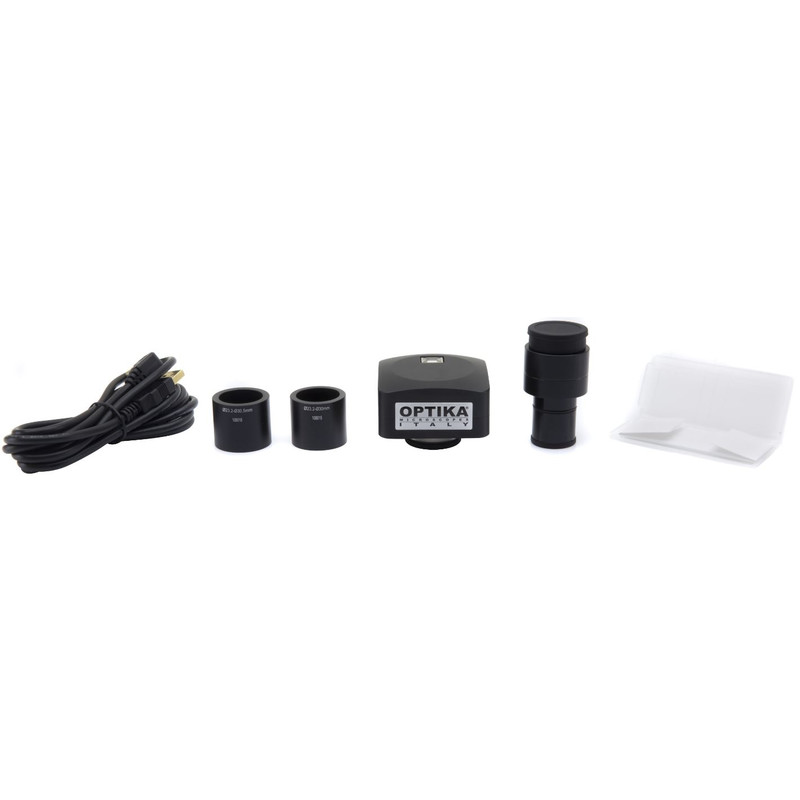

ACCESSORIES

Optical adapters 0.5x (for 23 mm eyepiece tube)

Adapters for Binocular & Monocular microscopes: 30 mm & 30.5 mm diameter

Calibration Slide: YES

Always Included: 1.8 m USB cable

ENVIRONMENT SPECIFICATION

Working temperature: -10 up to +50°C

Storage temperature: -20 up to +60°C

Relative Humidity: 30% to 80%

Storage Humidity: 10% to 60%

Dimensions: 58 x 58 x 36.4 mm

Weight: 0.18 Kg

SYSTEM REQUIREMENTS

Operating System: Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 o 64 bit) OSx (Mac OSx) starting from 10.7.5 Linux

PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher RAM: 2 GB or more USB port: USB 2.0, at least two ports

Dane techniczne

Wydajność


Wielkość czipu (mm)
1/2.5"
Megapiksel
5.1
Czułość na światło (Lux)
0.53V/lux-sec
Format obrazu
4/3
Zdolność rozdzielcza fotografii
2592 x 1944
Pamięć wewnętrzna (Megabyte)
-
Interfejs
C-Mount

Aparat fotograficzny


Megapiksel
5.1
chłodzenie
nie
Kamera kolorowa
tak
Rozmiar piksela
2,2
Transmisja obrazu
USB 2.0
czujnika
CMOS
Wielkość czipu (″)
1/2.5
Zdolność rozdzielcza fotografii
2592x1944
Częstotliwość (fps)
7
Migawka kamery
Rolling Shutter
min. czas naświetlania (ms)
0.294
Max. czas naświetlania (ms)
2000
Czułość (mV/s)
0.53 V/lux sec
Wymagany adapter
0.5x
Oprogramowanie
LiteView
Wspomagane systemy operacyjne
Win 7/8/10 Mac OS Linux

Ogólnie


Długość (mm)
58
Szerokość (mm)
58
Wysokość (mm)
36.4
Waga (g)
180
Seria
C-B

Inne


Numer produktu dostawcy
C-B5

Bezpieczeństwo produktów

Producent: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
Optika Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
Optika Aparat fotograficzny C-B5, color, CMOS, 5.1 MP, 1/2.5", USB 2.0
