Moticam - HDMI cameras
Motic's new generation of Moticam HDMI standalone cameras with onboard software for crisp and clear images. A mouse is all you need to work with the cameras' embedded software. Display Full HD or 4K live images on your screen by connecting them through their HDMI port.

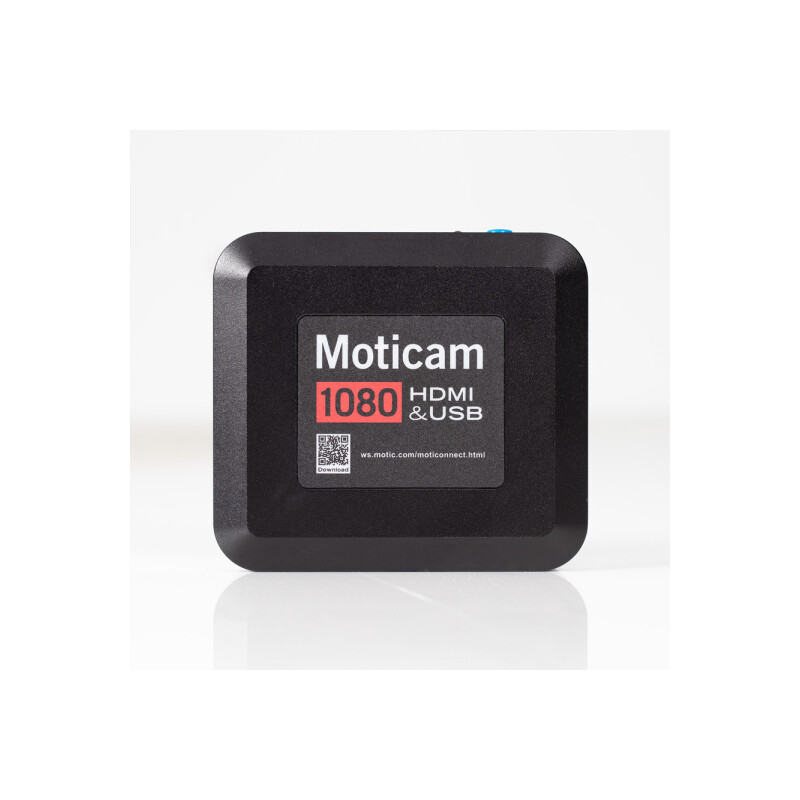

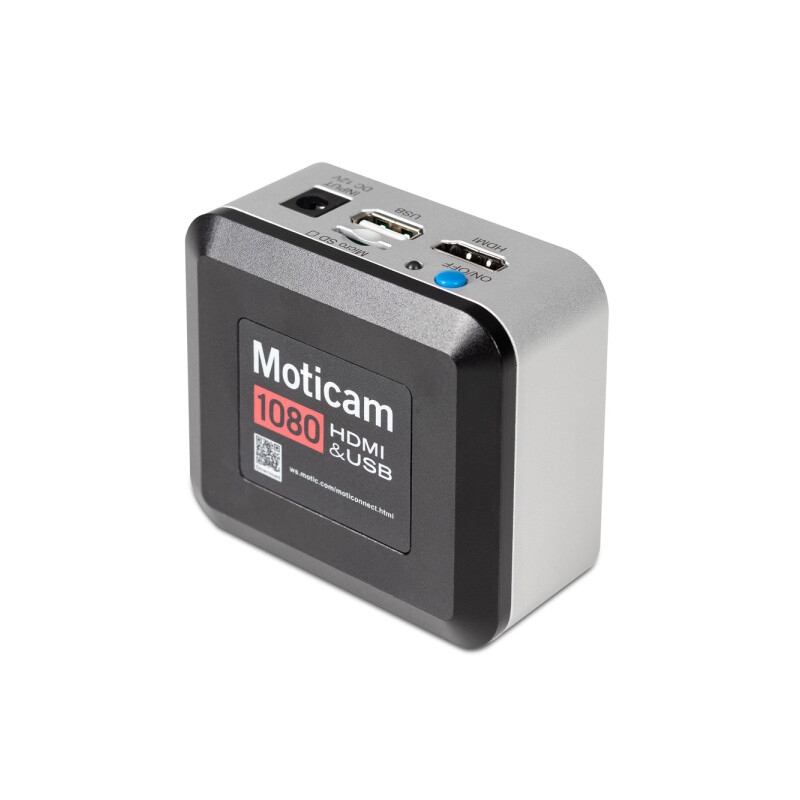

Moticam 1080N

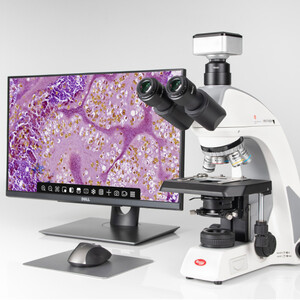

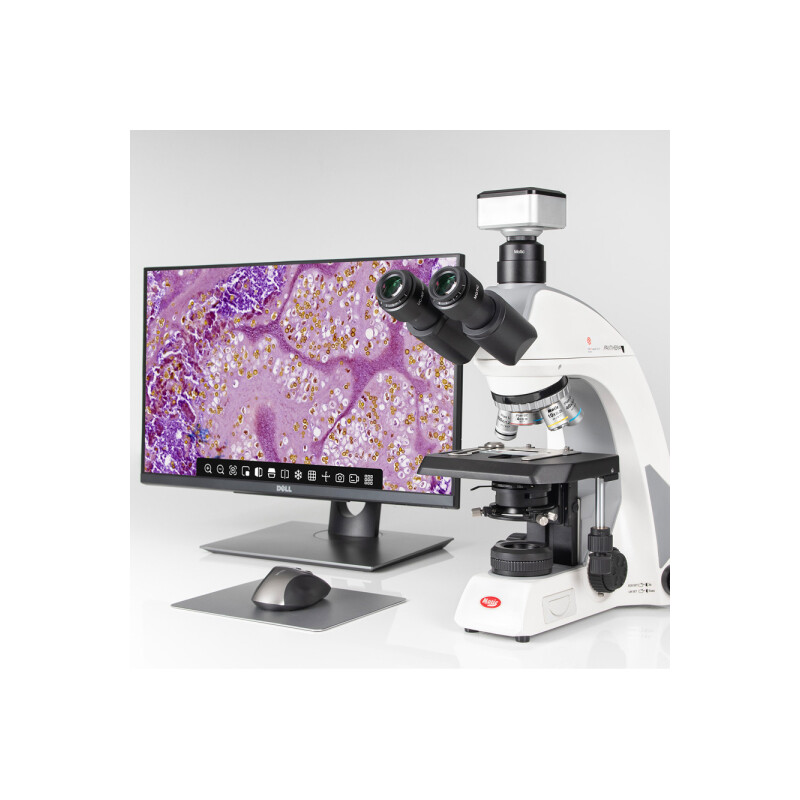

The Moticam 1080N, designed for ease of use and the ability to output fastlive images in Full HD (1920x1080px), displays your live images on a screen by connecting the camera through the HDMI port. Make live measurements, notes, image adjustments and more, thanks to its on-board software that can be controlled through the screen by connecting a USB mouse to the camera. By having an integrated micro SD card slot, saving images won´t require acomputer, making it easy to save and organize your images and videos. The USB port allows you to connect with a computer, even simultaneously, and use the Motic Images Plus software.
MOTICAM 1080N
Name Sensor type: CMOS IMX307
Sensor size: 1/2.8"
Imaging area: 6.46mm (Diagonal)
Capture resolution: 6MP (3264X1836)
Image capture resolution (on SD-card): 6MP (3264X1836)
Video capture resolution (on SD-card): Full HD (1920x1080 pixels)
Live display mode through USB: Full HD (1920x1080 pixels)
Live display mode through HDMI: Full HD (1920x1080 pixels)
Pixel size: 2.9x2.9µm
Scan mode: Progressive
Shutter mode: Rolling shutter

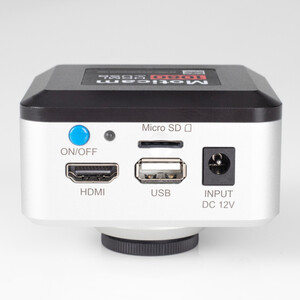

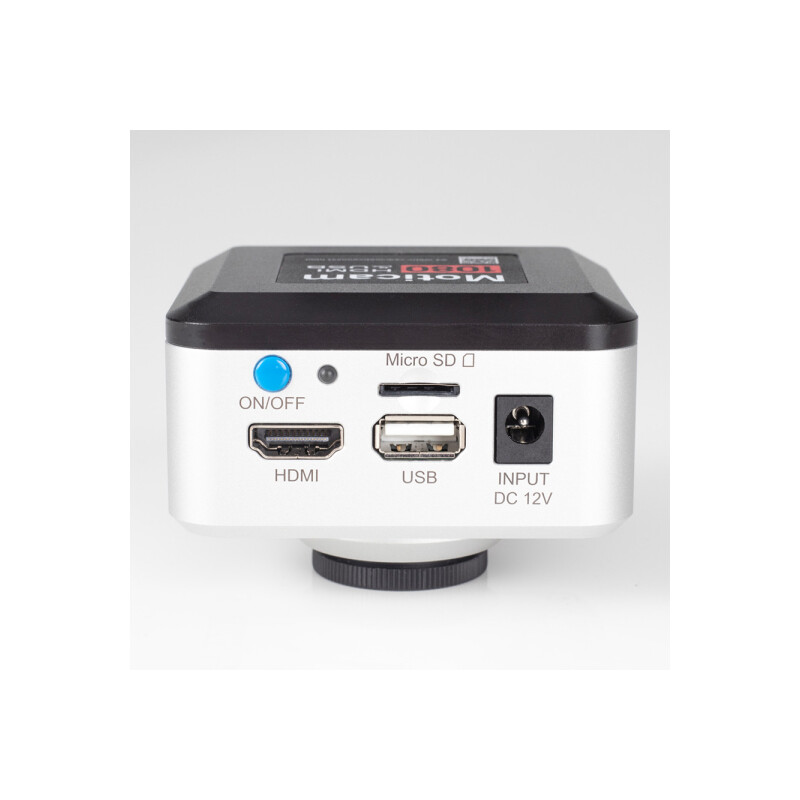

Data transfer: HDMI, USB, MicroSD card
Max. frames per second (fps): Full HD (1920x1080) @ 60 fps (*)
Exposure time: 20ms ~ 10s
Operating temperature: From -10 to +60 degrees Celsius non condensing
Slot: Micro-SD Card (Max. 128GB)
Buttons: On/Off
Support device: TWAIN and Direct Show Driver
Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount: C-Mount
Focusable lens: 12mm
Software Functions: On board Software and Motic Images Plus 3.1 for Windows 10 and Mac OSX or higher Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function
Power supply: 12V (External Power supply)
Scope of delivery:
CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro tube, universal power supply, HDMI cable, USB cable, USB pendrive with Motic Images Plus 3.1
Notice:
An SD card is optionally available!
